187 - Series Thermal Circuit Breakers - Panel Mount

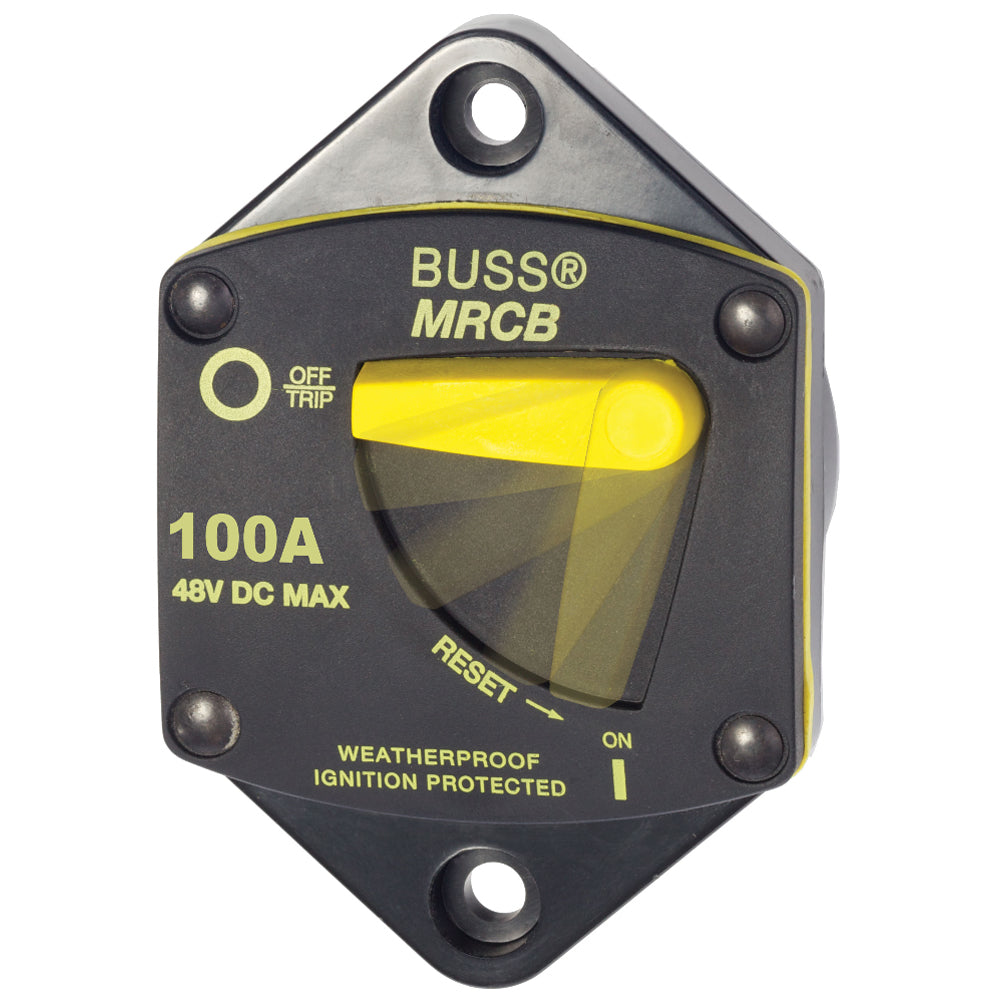

100 Amp Circuit Breaker
- Combines switching and circuit protection into a single device
- All components meet SAE J1171 external ignition protection requirements
- Clear, single lever operation
- "Trip Free" design cannot be held "ON" during fault current condition
- Recessed mounting holes for clean appearance
- Self-trimming case eliminates the need for mounting panels or trim bezels
- Round case permits easy installation with standard sized hole saw
- Large clearance around terminal studs accept heavy gauge wire lugs
- Robust 5/16 terminals provide high torque connections
- Large lever with vertical/horizontal orientation provides indication of trip status
- Ignition protected - safe for installation aboard gasoline powered boats
|Circuit Breaker Class:||Type III - Switchable / Manual Reset - Trip Free|
|Type:||Thermally Responsive Bi-Metal Blade|
|Case Material:||Thermoset Polyester|
|Voltage Rating:||48 Volts DC Maximum|
|Interrupt Rating:||5,000 Amperes @12 Volts DC|
|3,000 Amperes @24 Volts DC|
|1,500 Amperes @42 Volts DC|
|Operating Temperature Range:||-25C° to +82C°|
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Amperage: 100a
- Box Dimensions: 4"H x 5"W x 7"L WT: 0.5 lbs
- UPC: 632085170448
